AL43SH23

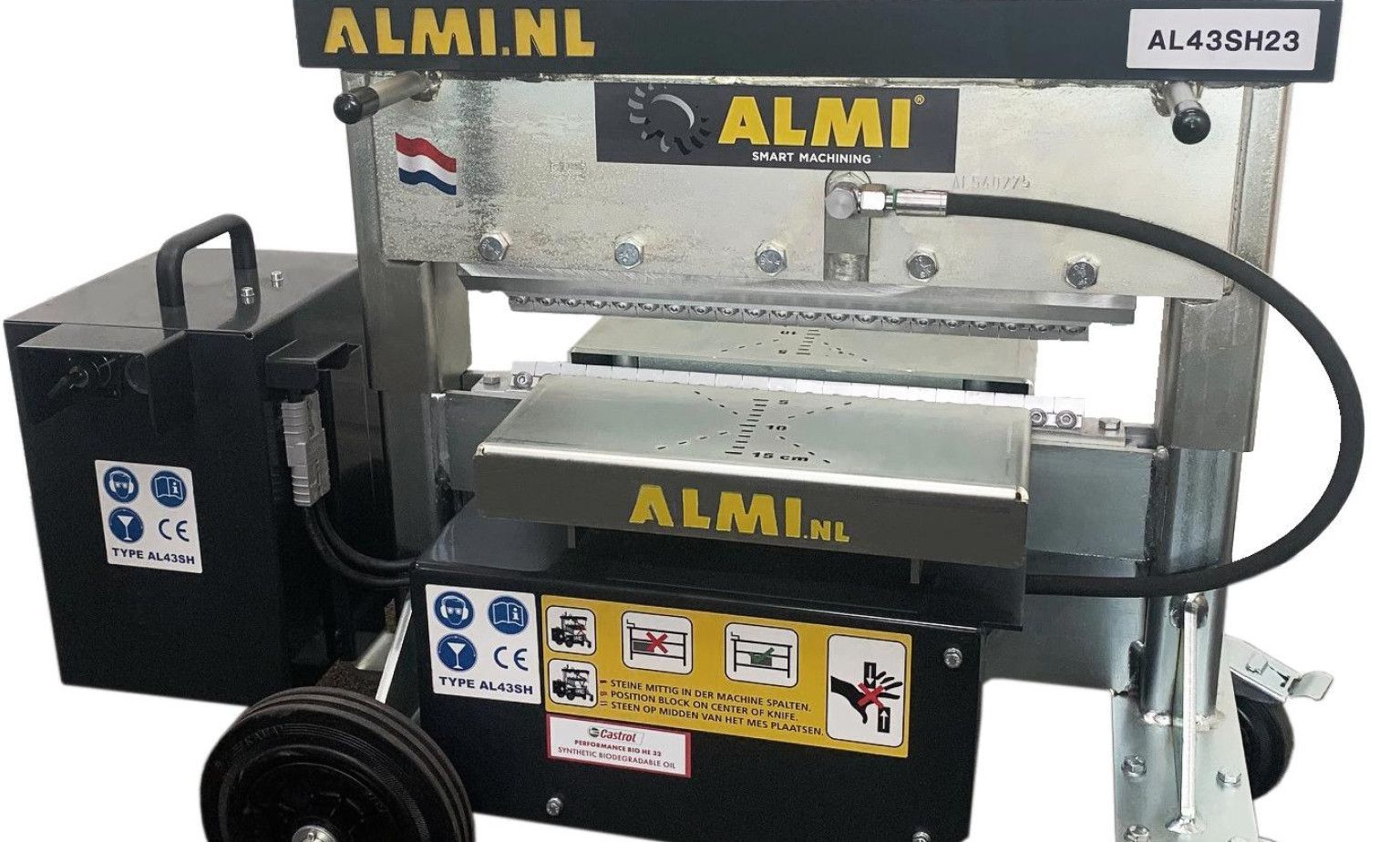

The AL43SH23 block splitter is a patented electro-hydraulic block splitter developed by ALMI. The block splitter is equipped with five cylinders in a row. The pressure is always evenly distributed over the surface to be cut, resulting in a tight and straight cut.

Improved conditions

The cutting height can be easily adjusted using a single spindle. The stone is placed on the resilient supporting plates. These are equipped with a ruler and degree division so the stone can easily be cut to the desired length. The AL43SH14 is electrically hydraulically driven, which means a cutting force of 14 tons can be achieved at the touch of a button. As a result, the paver does not have to make an effort to cut stones.

Undisturbed cutting

This AL43SH23 block splitter has a battery box containing a maintenance-free battery and a charger. With a charged battery, you can work all day, and after working hours, the battery box can easily be removed from the block splitter to charge the battery at night. The block splitter is equipped with biodegradable oil.

Plastic slat blade with triangular carbide blades

The carbide-cutting teeth are arranged flexibly. These adapt to the shape of the stone up to 4 mm unevenness, resulting in tight and perfect paving. With a cutting width of 50 – 430 mm, (baked) clinkers and tiles can be easily cut. Due to the considerable stroke length of 25 mm, the user has to adjust the height of the block splitter less often, which is very user-friendly.

Lifetime and maintenance free

The AL43SH23 is equipped with a maintenance-free battery and a fully automatic charger mounted in the machine's housing. This fully automatic charger automatically switches to maintenance mode when the battery is charged. This block splitter is produced in a robotized welding cell, which ensures constant and high quality. All parts of this block splitter are electrolytically galvanized, resulting in a longer service life.

Suitable for Thick paving slabs, granite and natural stone
Benefit Electric hydraulic powered large splitting force 23 tons
Cutting width 50 - 430 mm
Cutting height 20 - 220 mm
Blades Solid installed hard metal triangular blades (can be used on 3 sides)
Weight 150 kg
Application Straight and angled (90° – 45°)

Download the block splitter brochure

Brochure ALMI block splitter.pdf
