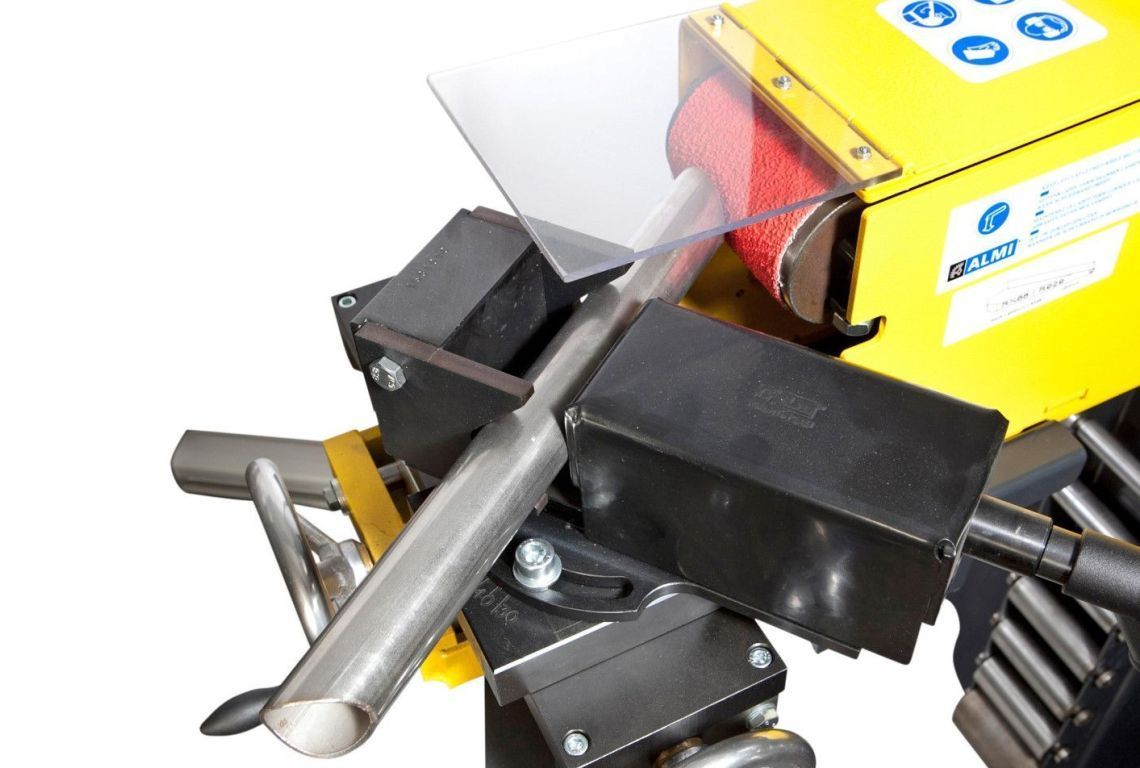

AL 150
The AL150 has the choice of being operated using two handwheels or using a lever. Both options are available on the machine. With the AL150, you can grind material from ø20 to ø114.3 mm. The cross support and the carriage with a rotating clamp are infinitely adjustable. All tube profiles can be ground at any desired angle from 20° to 90°. The AL150 grinds square, rectangular and round pipes with different wall thicknesses and is suitable for all common types of material. The grinding belt can be tensioned quickly, and grinding rollers can be changed in just a few seconds.
ALMI pipe grinders offer added value through the certainty of years of problem-free, accurate and fast pipe processing. Because ALMI pipe grinders are sold worldwide, this proves the guarantee of excellent quality products. ALMI also strives for the continuity of product development processes and innovations. To provide you with the latest and best-developed pipe grinders at all times.
Weight | 260 kg |
Motor | 4KW |
Belt speed | 30 meter p/sec./2800 rpm |
Belt size | 150x2000 mm |
Grinding diameters | 20,0 / 114,3 mm |
Grinding angle | 20° - 90° |
Operation | Lever and handwheel operation |
Dimensions | 1450x1200x850 mm |
