ELV200 BL

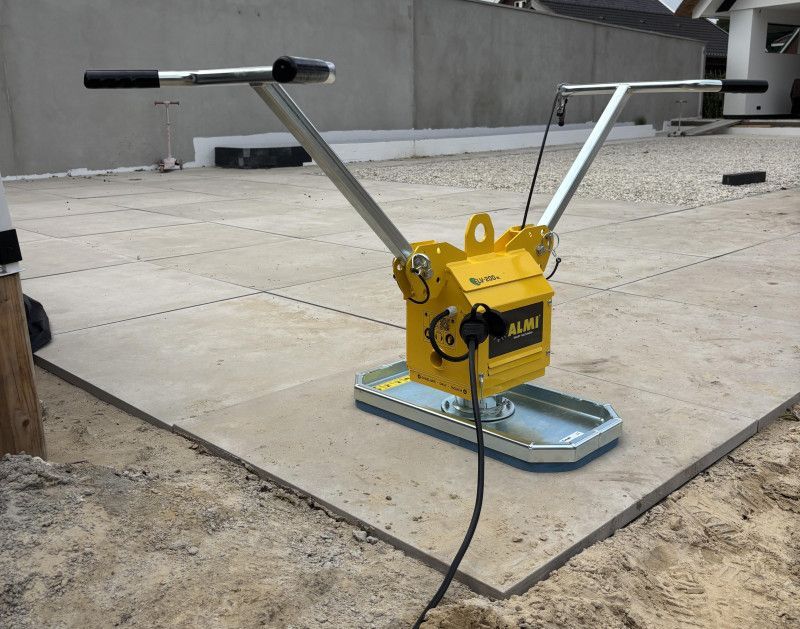

Lifting/relocating (concrete) products up to 200 kg? With the ELV-200-BL this can be done without any problems. With suction plates ranging between 30 kg. and 200 kg. working load limit, there is a suitable suction plate for every product up to 200 kg.

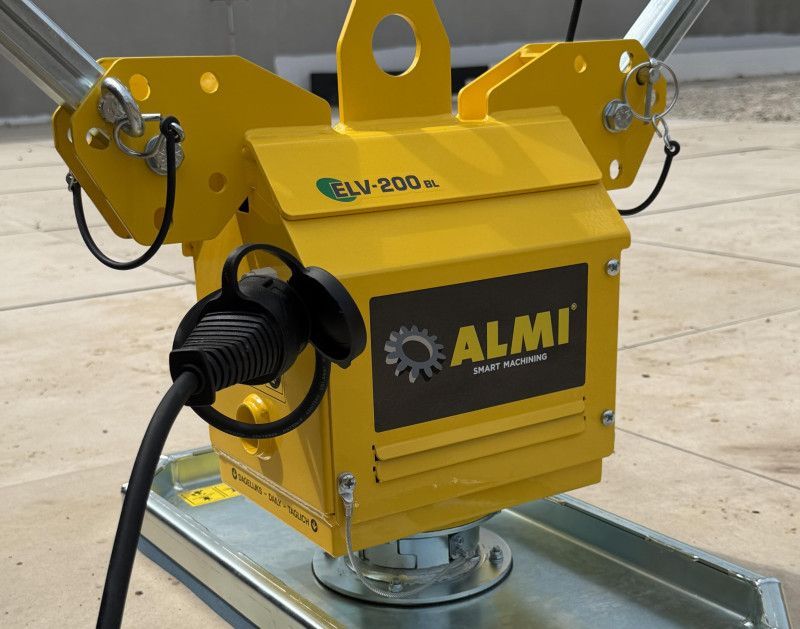

The ELV-200-BL is a compact Vacuum Lifting Aid powered by a 230V or 110V blower pump. The blower pump moves the air at high speed, making the unit ideal for lifting porous materials.
Hand and Machine

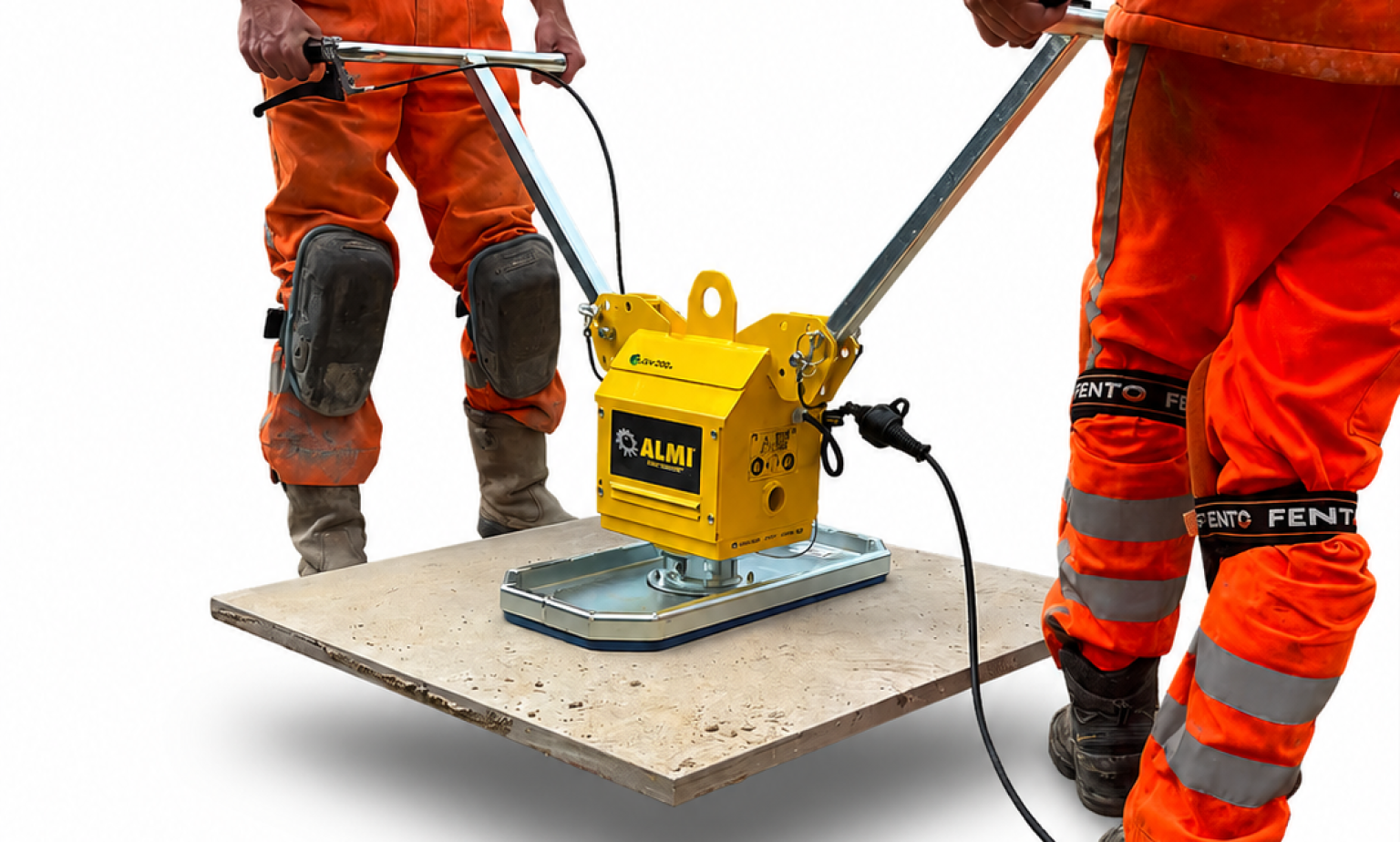

Each unit is equipped with adjustable steering handles, a lifting eye and a 10-meter extension cord. The ELV-200-BL can be used by hand, but also very easily on your machine by using the standard lifting eye.
Comfort and safety

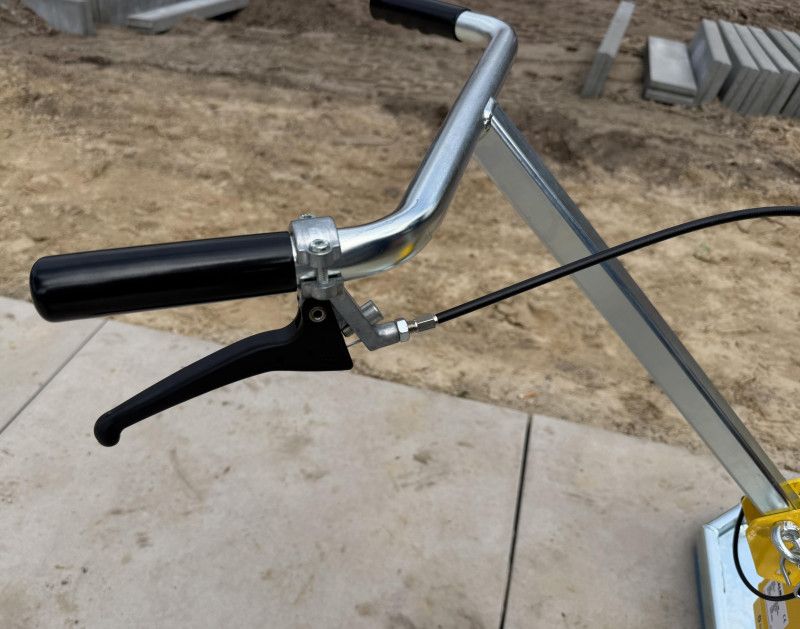

The steering handle is equipped with a manual release valve, so suction and release directly from the steering handle. There are 3 working positions and a transport position. Finally, the unit is equipped with a clearly visible vacuum meter that shows whether it is safe to lift.
| Weight | 21 kg |
| Working Load Limit | 200 KG |
| dimensions | 1430 x 660 x 550 mm |
| Propulsion | Blower Pump |
| Pump Capacity | 212 m³/H |
| Minimum Work Pressure | -0.2 Bar |
| Controls | Manual |
-
Easy lifting andrelocating
-
Flexible to use
-
Comfortable solution for heavy lifting jobs
-
Weighs just 21 kg – easy to handle
