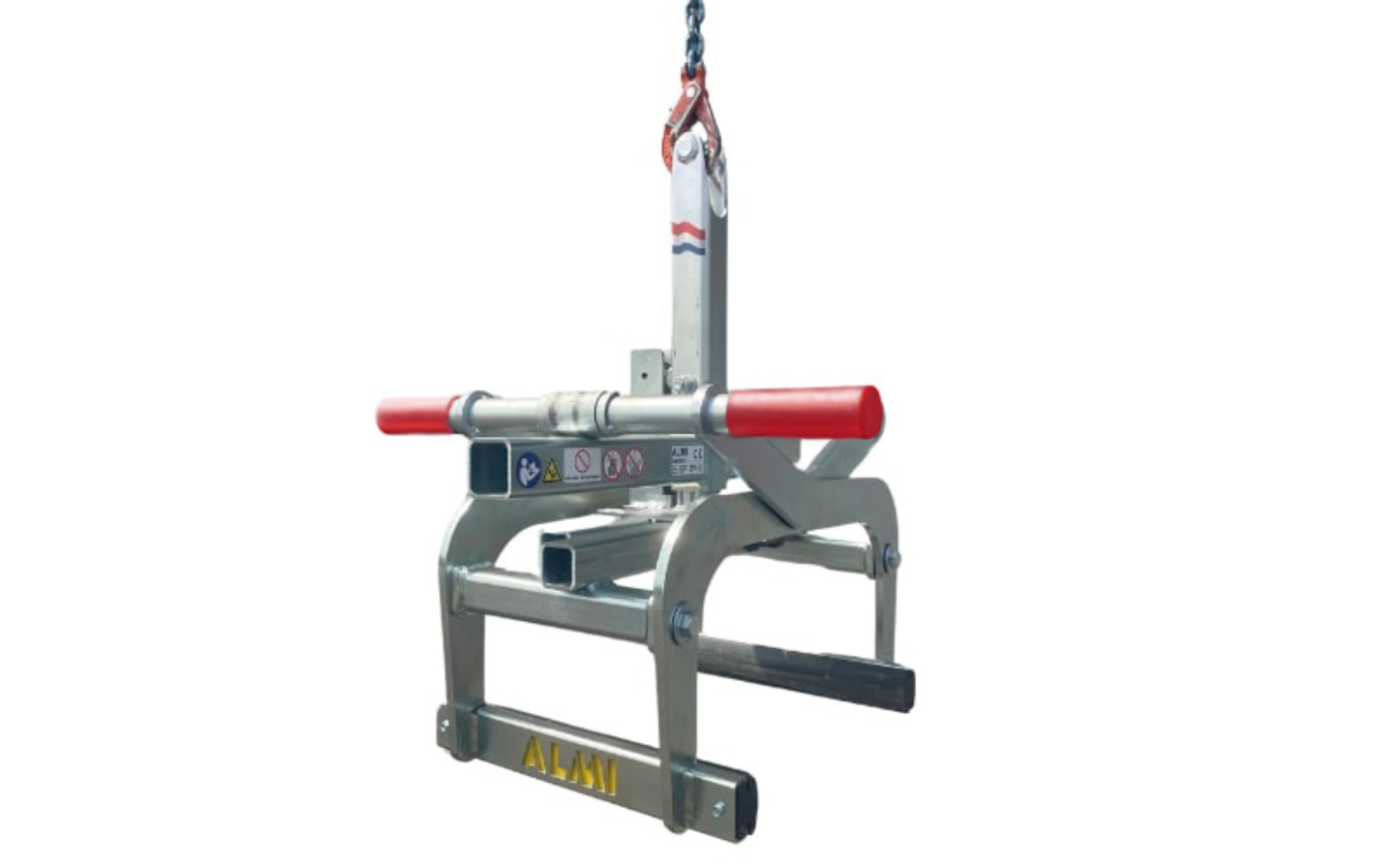

AL750-UNI Concrete Step Handles
The AL750-UNI is the ideal step handle for gripping and moving kerbs, steps and blocks etc. This universal galvanised clamp can lift up to as much as 750 kg / 1653 lbs. The AL750-UNI can automatically unlock and lock using the changeover automatic.
Further information:
- Easily adjustable opening with by means of a spring-loaded bolt.
- Considerable inside height. Conical kerb stones are also gripped securely, as the gripper has an inside height of 185 mm (7¼ inch) thus being able to grip underneath the conical form.
- Lifting eye for aataching to crane hook.
- Automatic release for fully automatic switch-over from "full" to "empy".
- Exchangeable profiled rubber seals.
- Galvanised finish
The AL750-UNI Concrete Step Handles can be delivered with various accessories:
- Strips with tungston carbide tips: These optional strips are equipped with tungston carbide tips and are easy to fit. Especially for heavier and slicker kerbs.
- Adjustable height stop: The height adjusters are easy to use, avoiding the constant adjustment of the gripping depth for goods of similar dimensions.
- Steelfinger grippers. These special steelfinger grippers are specially designed for rough stones and tree trunks. The jaws can be assembled in a few simple steps.
| Suitable for | Kerbs, steps, blocks |
| Inside height | 185 mm |
| Gripping range | 50-600 mm |
| Lenght of Gripping | 350mm |
| Weight | 29 kg |
| Working load limit | 750 kg |
Download the Concrete Step Handles flyer
-
